5.8G 100W RF RF Amplifier Module Counter UAS RF Amplifier Wide Frequency Range

Name: 58G 100W RF RF Amplifier Module Counter UAS RF Amplifier Wide Frequency Range
Brand: Roviyno
Price: 65 USD

5.8G 100W RF RF Amplifier Module Counter UAS RF Amplifier Wide Frequency Range Manufactures

Supply Ability : <500 pcs 10 working days

Model Number : RAH-50W-57005850

Working Voltage : 28V

Payment Terms : T/T

Working Temperature : -20～+65℃

Place of Origin : China Mainland

Output Power (Max) : ≥47 dBm

Price : $65/pc--$165/pc

Packaging Details : Carton box

Dimension : 130*58*18 mm

Delivery Time : 7-10 working days

Brand Name : Roviyno

Frequency Range : 5700-5850MHz

MOQ : 100

LED indicator : Yes

Contact Now

5.8G 100W RF Frequency Range Power Amplifier Modules

Narrow and Broad band RF modules using solid state devices including LDMOS and GaN in Class A and Class A/B topologies for AM, FM, VHF, and UHF bands with output power ranging from 0dbm to 50dbm and higher! Custom modules also av ailable.

Product Highlights

Wide Frequency Range: Operates from 100MHz to 7.2GHz for comprehensive drone jamming coverage.
Customizable Frequency: Working frequency 5725-5850MHz can be customized to any specific frequency.
Adjustable Parameters: Features adjustable bandwidth and GaN voltage for optimized performance.
ODM and OEM Services: Full customization available including designs, samples, and minor adjustments.
Fast Delivery: Standard delivery within 3-10 working days after deposit receipt.
Multiple Payment Options: Supports T/T, Western Union, PayPal, and Credit Card for flexible transactions.
Global Shipping: Accepts DHL, UPS, TNT, FedEx, and sea shipments to any destination

5.8G 100W RF RF Amplifier Module Counter UAS RF Amplifier Wide Frequency Range

50W Module Technical Datasheet

RF DATA

Item		Spec.	Remarks
Working Voltage		28V	24-28V
Working current		≤ 4.2A	Output 50W
Analog sweeping speed		120 KHz/ 8μ/s	Customize
Output Power (Max)		47±1 dBm	50W
Gain		47±1 dB
Ripple in Band		≤ 3 dB	Peak
Bandwidth adjustment		Yes	By screw
Center adjustment		Yes	By screw
VSWR Protection		Internal circulattor	Customize
Temperature Protection		75℃	Customize
No-load Protection		Yes	Customize
Enable control		Customize	3-28V
Input Signal Source		Built-in high-speed noise modulation signal source
Output VSWR		≤2
High Low Temperature test	Temperature	-20～+65℃	Working properly
	Gain Stability	±2 dB	At -20℃～+65℃
	Power stability	±2 dB	At -20℃～+65℃
Power supply Port		Positive and negative	(Optional: Enable control wire)
Shell Material		Aluminum	With polish processing
RF output connector		SMA-K
Dimension		1123716 mm	Or Customize
Screw Size		M2.5
Weight		230g	Customize

Frequencies Optional

No.	Frequency Range	Output Power	PA Technology	Isolator	Dimensions (mm)
50W VCO RF Power Amplifier Module
1	20–100 MHz	50W	SiMOS	No	117×58×16
2	100–200 MHz	50W	SiMOS	No	117×40×18 / 117×58×16
3	200–300 MHz	50W	SiMOS	No	117×40×18 / 117×58×16
4	300–400 MHz	50W	GaN	No	117×40×18 / 117×58×16
5	300–400 MHz	50W	LDMOS	Yes	130×58×18
6	300–400 MHz	50W	GaN	Yes	130×58×18
7	400–500 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
8	500–600 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
9	600–700 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
10	700–840 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
11	840–1020 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
12	1000–1300 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
13	1300–1500 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
14	1550–1650 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
15	1700–1900 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
16	1900–2100 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
17	2400–2500 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
18	2575–2690 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
19	3100–3800 MHz	50W	GaN	Yes	117×40×18 / 117×58×16
20	3800–4800 MHz	50W	GaN	Yes	117×58×16
21	4800–5000 MHz	50W	GaN	Yes	117×58×16
22	5100–5300 MHz	50W	GaN	Yes	117×58×16
23	5300–5700 MHz	50W	GaN	Yes	117×58×16
24	5700–5850 MHz	50W	GaN	Yes	117×58×16
25	5900–6200 MHz	50W	GaN	Yes	117×58×16

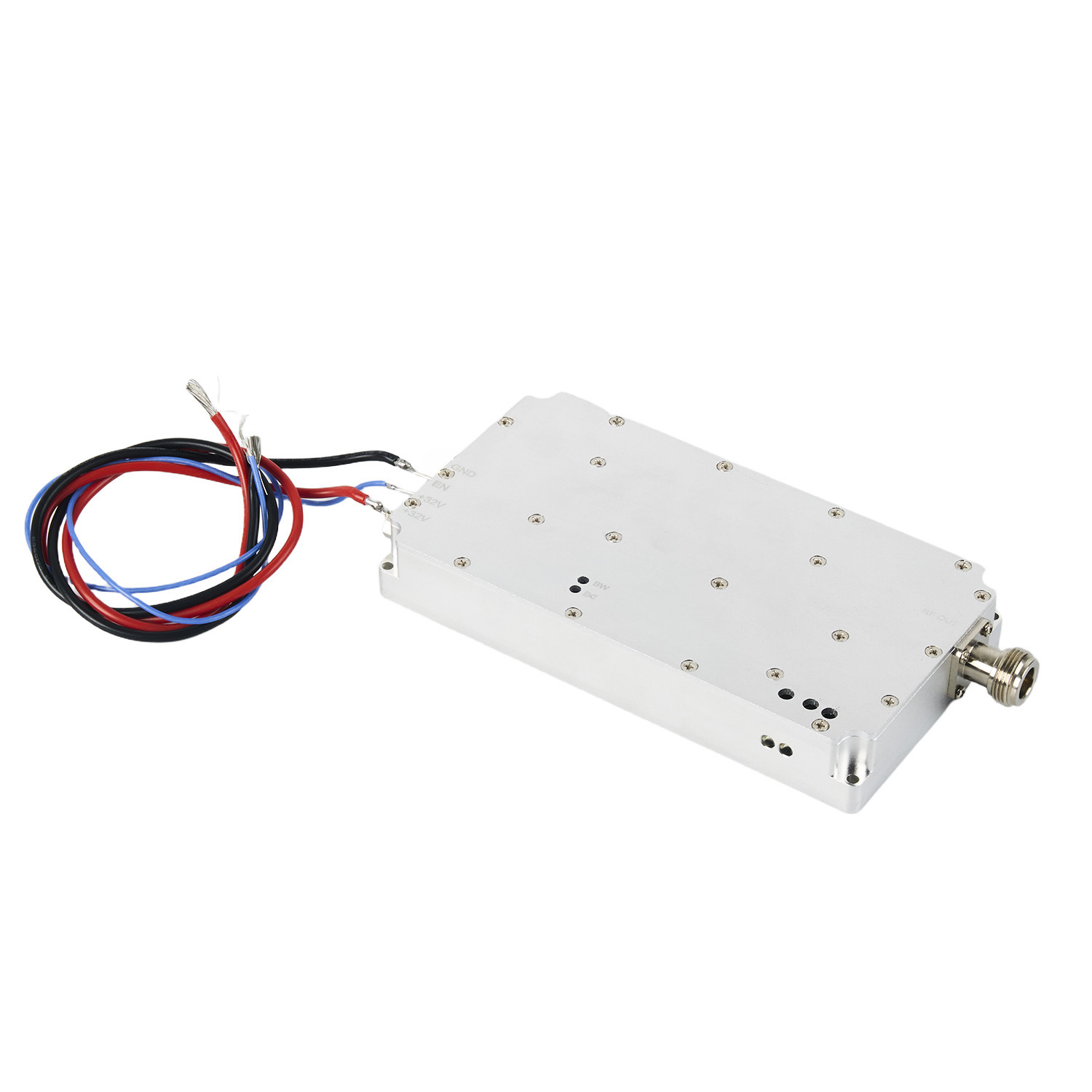

Product images

Product Tags:

5.8GHz Counter UAS RF Amplifier

5700-5850MHz High Power Amplifier Module

Wideband 5.8GHz RF Power Amplifier
